Shaped seamless steel tube
Tenjan
Shaped seamless steel tube
1. Product Description /Specifications
Production Range | Outer Diameter：10-120mm (0.4 inch - 4.7 inch) |
Wall Thickness：1-20mm (0.04 inch - 0.78 inch) | |
Material / Grade | Carbon Steel： GB/T 3094: 10#, 20#, 35#, 45#, 55#, Q235B, Q235C, CF53, A105 ASTM A519: 1010, 1020, 1026, 1035, 1045, 1050 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: C10/CK10, C22/CK22, C35/CK35, C45/CK45, CF53 JIS3441/JIS3444/JIS3445: STKM11A, STKM12A/STKM12B/STKM12C, STKM13A/STKM13B/STKM13C JIS G4051: S10C, S20C, S25C, S35C, S45C, S55C |
Alloy Steel： GB/T 3094: 16Mn(Q345B), 20Cr, 40Cr, 15CrMo, 20CrMo, 28CrMo, 30CrMo, 35CrMo, 42CrMo, 20CrMnTi, 40MnMoV, 20Mn2, ZF6, 16MnCr5, 20MnCr5, 38Mn2V, 09CrCuSb(ND) ASTM A519: 5120, 5140, 4130, 4135, 4140 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: ST52, EN10084-1998 20Cr4, 41Cr4, 15CrMo4, 25CrMo4, 35CrMo4, 42CrMo4, 16MnCr5 JIS3441/JIS3444/JIS3445: SCM432/SCRRM3, SCM4 JIS G4053: JIS SCr420, JIS SCr440, SCM415, SCM420 | |
Tolerance | Can be customized according to customer’s requirements |
Technique | Cold Drawn / Cold Rolled |
Shape | Triangle, Hexagon, Square, Rectangle, Octagon, Lemon Pipe and Others can be customized |

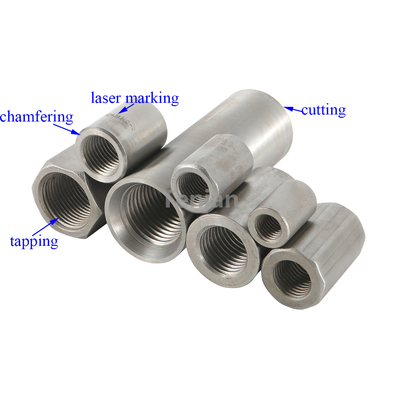

Further Processing for Steel Tubes | Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking |
2. Product Photos
Outside Hexagonal Tube
Inside Hexagonal Tube
Internal and External Hexagonal Tube
Lemon Pipe
Triangle Steel Tube
Rectangular Steel Tube
Square Tube
Splined Tube
Trapezoidal Steel Tube
D Shape Steel Tube
3. Application
 |  |  |
| Hydraulic System | Fire Fighting Accessories | Fastener - High Strength Nut |
 |  |  |
| Triangular Drill Pipe | Agricultural Drive Shaft | Pre-stressed Anchoring Nut |
4. International Steel Grade Table
International Steel Grade Table | |||||
China | ASTM A519 | DIN | JIS 3445 | JIS G4051 | |
Carbon Steel | 10# | 1010 | DIN C10/CK10 | STKM11A | S10C |
20# | 1020 | DIN C22/CK22 | STKM12A/STKM12B/ STKM12C | S20C | |
25# | 1026 | STKM13A/STKM13B/ STKM13C | S25C | ||
35# | 1035 | DIN C35/CK35 | S35C | ||
45# | 1045 | DIN C45/CK45 | S45C | ||
55# | S55C | ||||
CF53 | 1050 | CF53 | |||
Q235B | |||||
Q235C | |||||
A105 | |||||
Alloy Steel | 16Mn(Q345B） | St52 | |||
20Cr | 5120 | 20Cr4 (EN 10084-1998) | JIS SCr420( JIS G4053) | ||
40Cr | 5140 | 41Cr4(1.7035) | JIS SCr440( JIS G4053) | ||
15CrMo | 15CrMo4 | SCM415 (JIS 4053) | |||
20CrMo | 25CrMo4(1.7218) | SCM420 (JIS 4053) | |||
28CrMo | |||||
30CrMo | 4130 | ||||
35CrMo | 4135 | 35crmo4(1.7220) | SCM432/SCRRM3 | ||
42CrMo | 4140 | 42CrMo4(1.7225) | SCM4 | ||
20CrMnTi | |||||
40MnMoV | |||||
20Mn2 | |||||
ZF6 | 16MnCr5(1.7131) | ||||
16MnCr5 | |||||
20MnCr5 | |||||
38Mn2V | |||||
36Mn2V | |||||
09CrCuSb(ND钢) | |||||
Steel Tube Standard | Seamless Steel Tubes for Structural Purposes GB/T 8162-2018 | ASTM A519 | DIN17121/EN 10297-1 | JIS3441/JIS3444/JIS3445 | |
Seamless Steel Pipes for Liquid Service GB/T 8163-2018 | ASTM A106 | ||||
Seamless Cold-drawn or Cold-rolled Steel Tubes for Precision Applications GB/T 3639-2009 | DIN1629/DIN2391 / EN 10305-1 | ||||
Cold Drawn Shaped Steel Tubes GB/T 3094-2012 | ASTM A500 / ASME SA500 | ||||
Seamless Steel Tubes for Automobile Stabilizer Bar GB/T 33821-2017 | |||||
Rebar Coupler Standard | Couplers for Rebar Mechanical Splicing JG/T 163-2013 | ||||
